ENPING JES AUDIO CO.,LTD.

DM-535

Category:

Metal series

Keywords:

DM-535
  • DM-535.png

Product Description

Specification:

Type Condenser
Sensitivity Range -46±2dB RL=2.2KΩ Vs=1.5V  ( 1KHz 0dB=1V/Pa)
Impedance 600Ω
Frequency 40-18000 Hz
Directivity Cardioid  (0。~180。,@1KHz>12db)
Current Consumption Max.0.5mA
Operation Voltage Range 1.0V-10V
Max. Sound Pressure Level 123dB S.P.L
S/N Ratio More than 66dB
Sensitivity Reduction 3V-1.5V Sensitivity Variation less than 3dB

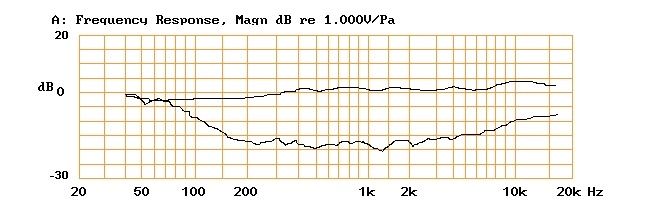

频响曲线:
