Product Description
Specifications:
Type | Condenser |
Sensitivity Range | -46±2dB RL=2.2KΩ Vs=1.5V ( 1KHz 0dB=1V/Pa) |
Impedance | 600Ω |
Frequency | 40-18000 Hz |
Directivity | Cardioid (0。~180。,@1KHz>12db) |
Current Consumption | Max.0.5mA |
Operation Voltage Range | 1.0V-10V |
Max. Sound Pressure Level | 123dB S.P.L |
S/N Ratio | More than 66dB |
Sensitivity Reduction | 3V-1.5V Sensitivity Variation less than 3dB |

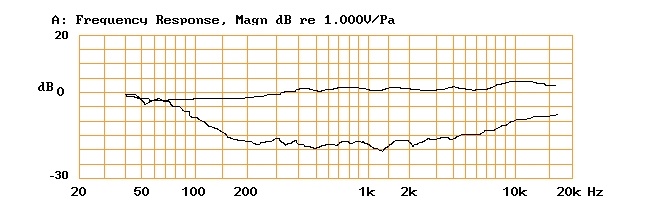

Frequency response curve:
